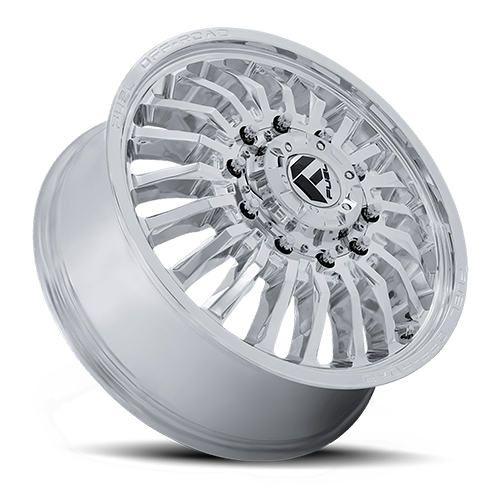

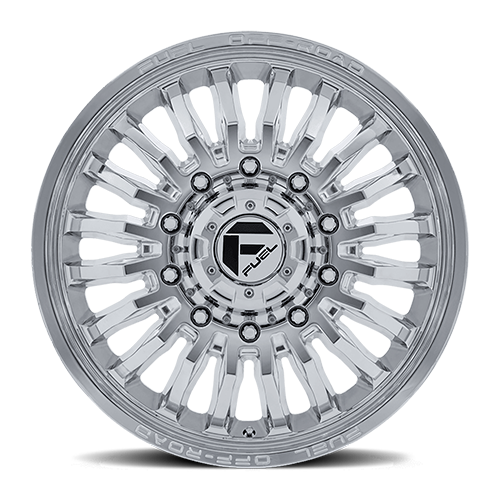

about the Fuel 1-Piece Wheels Arc Dually
Available Sizes: 20x8.25, 22x8.25
The Fuel Off-Road Arc Dually series elevates the rugged functionality of the Arc line to meet the specific needs of dual-rear-wheel trucks. Featuring a convex front wheel and deep concave rear wheel, this series emphasizes heavy-duty load capacity. The Arc Dually is designed to handle the heavier payloads and towing demands typical of dual-rear-wheel trucks like the Chevy Silverado 3500HD, GMC Sierra 3500HD, RAM 3500, and Ford F-350 Super Duty. Available in a 20" diameter, it offers tailored options for dually configurations.
Fuel 1-Piece Wheels Arc Dually
Specifications
| Part # | Finish | Size | BP 1 | BP 2 | Offset | Bore | Load | Weight | Price |
|---|---|---|---|---|---|---|---|---|---|
| D891208217 | POLISHED | 20x8.25 | 8X170 | 104 | 125.1 | 3000 | 49 | Call for Price | |
| D89120821735 | POLISHED | 20x8.25 | 8X170 | -201 | 125.1 | 3000 | 54 | Call for Price | |
| D89120821745 | POLISHED | 20x8.25 | 8X170 | -227 | 125.1 | 3000 | 59 | Call for Price | |
| D891208272 | POLISHED | 20x8.25 | 8x165.1 | 104 | 117 | 3000 | 50 | Call for Price | |
| D89120827225 | POLISHED | 20x8.25 | 8x165.1 | -201 | 117 | 3000 | 54 | Call for Price | |
| D89120827235 | POLISHED | 20x8.25 | 8x165.1 | -227 | 117 | 3000 | 59 | Call for Price | |
| D89120827245 | POLISHED | 20x8.25 | 8x165.1 | -246 | 117 | 3000 | 58 | Call for Price | |
| D89120828D | POLISHED | 20x8.25 | 8x165.1 | 104 | 121.5 | 3000 | 50 | Call for Price | |
| D89120828D35 | POLISHED | 20x8.25 | 8x165.1 | -240 | 121.5 | 3000 | 56 | Call for Price | |
| D89120828D45 | POLISHED | 20x8.25 | 8x165.1 | -265 | 121.5 | 3000 | 61 | Call for Price | |
| D891208292 | POLISHED | 20x8.25 | 8X200 | 104 | 142 | 3000 | 49 | Call for Price | |
| D89120829235 | POLISHED | 20x8.25 | 8X200 | -201 | 142 | 3000 | 53 | Call for Price | |
| D89120829245 | POLISHED | 20x8.25 | 8X200 | -227 | 142 | 3000 | 57 | Call for Price | |
| D891208293 | POLISHED | 20x8.25 | 8X210 | 104 | 154.3 | 3000 | 48 | Call for Price | |
| D89120829325 | POLISHED | 20x8.25 | 8X210 | -201 | 154.3 | 3000 | 52 | Call for Price | |
| D89120829335 | POLISHED | 20x8.25 | 8X210 | -227 | 154.3 | 3000 | 56 | Call for Price | |
| D89120829345 | POLISHED | 20x8.25 | 8X210 | -246 | 154.3 | 3000 | 54 | Call for Price | |
| D8912082A9 | POLISHED | 20x8.25 | 10X225 | 104 | 170.1 | 3750 | 51 | Call for Price | |
| D8912082A935 | POLISHED | 20x8.25 | 10X225 | -201 | 170.1 | 3750 | 51 | Call for Price |
| Part # | Finish | Size | BP 1 | BP 2 | Offset | Bore | Load | Weight | Price |
|---|---|---|---|---|---|---|---|---|---|
| D891228217 | POLISHED | 22x8.25 | 8X170 | 104 | 125.1 | 3000 | 56 | Call for Price | |
| D89122821735 | POLISHED | 22x8.25 | 8X170 | -201 | 125.1 | 3000 | 59 | Call for Price | |
| D89122821745 | POLISHED | 22x8.25 | 8X170 | -227 | 125.1 | 3000 | 64 | Call for Price | |
| D891228272 | POLISHED | 22x8.25 | 8x165.1 | 104 | 117 | 3000 | 56 | Call for Price | |
| D89122827225 | POLISHED | 22x8.25 | 8x165.1 | -201 | 117 | 3000 | 60 | Call for Price | |
| D89122827235 | POLISHED | 22x8.25 | 8x165.1 | -227 | 117 | 3000 | 65 | Call for Price | |
| D89122827245 | POLISHED | 22x8.25 | 8x165.1 | -246 | 117 | 3000 | 63 | Call for Price | |
| D89122828D | POLISHED | 22x8.25 | 8x165.1 | 104 | 121.5 | 3000 | 56 | Call for Price | |
| D89122828D35 | POLISHED | 22x8.25 | 8x165.1 | -240 | 121.5 | 3000 | 62 | Call for Price | |
| D89122828D45 | POLISHED | 22x8.25 | 8x165.1 | -265 | 121.5 | 3000 | 66 | Call for Price | |
| D891228292 | POLISHED | 22x8.25 | 8X200 | 104 | 142 | 3000 | 55 | Call for Price | |
| D89122829235 | POLISHED | 22x8.25 | 8X200 | -201 | 142 | 3000 | 58 | Call for Price | |
| D89122829245 | POLISHED | 22x8.25 | 8X200 | -227 | 142 | 3000 | 63 | Call for Price | |
| D891228293 | POLISHED | 22x8.25 | 8X210 | 104 | 154.3 | 3000 | 55 | Call for Price | |
| D89122829325 | POLISHED | 22x8.25 | 8X210 | -201 | 154.3 | 3000 | 58 | Call for Price | |
| D89122829335 | POLISHED | 22x8.25 | 8X210 | -227 | 154.3 | 3000 | 61 | Call for Price | |
| D89122829345 | POLISHED | 22x8.25 | 8X210 | -246 | 154.3 | 3000 | 60 | Call for Price | |
| D8912282A9 | POLISHED | 22x8.25 | 10X225 | 104 | 170.1 | 3750 | 57 | Call for Price | |
| D8912282A935 | POLISHED | 22x8.25 | 10X225 | -201 | 170.1 | 3750 | 57 | Call for Price |
